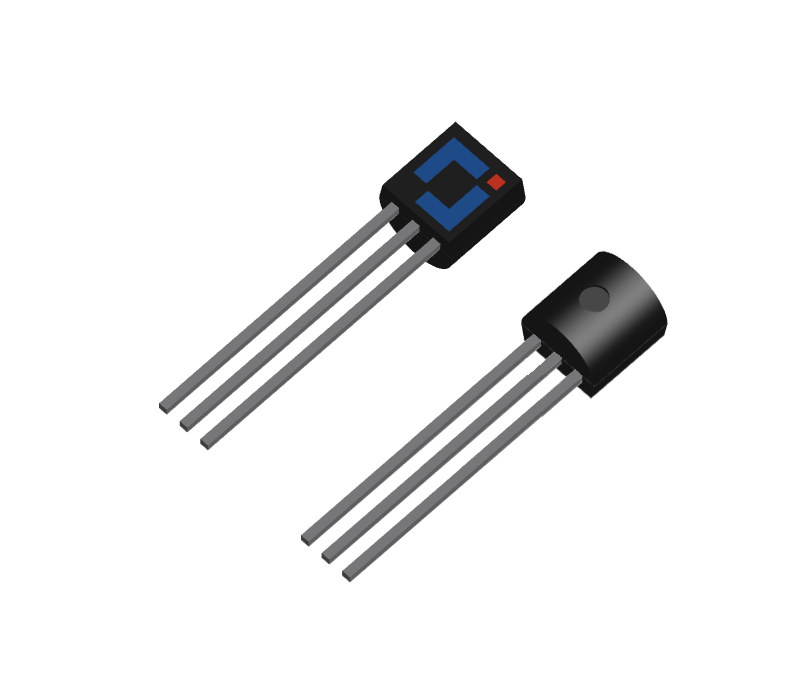

Nch 60V 0.2A, TO-92, Trench MOSFET
| Part Number | Status | ESD Yes/No |
VDS V |
VGS V |
ID A |
VGS(TH) V |
RDS(mΩ)@VGS 10V Typ |
RDS(mΩ)@VGS 10V Max |
RDS(mΩ)@VGS 4.5V Typ |
RDS(mΩ)@VGS 4.5V Max |
Package |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2N7000 | Active | No | 60 | - | 0.2 | 0.8~3 | - | 5000 | - | 6000 | TO-92 |
| Part Number | Package Type | Marking | Packing Info | BOX | Carton | MSL |
|---|---|---|---|---|---|---|
| 2N7000 | TO-92 | 2N7000 | 2Kpcs/BOX,1Kpcs/Bags | 2k(BOX)/10K(Bags) | 20K(BOX)/100K(Bags) | NA |
