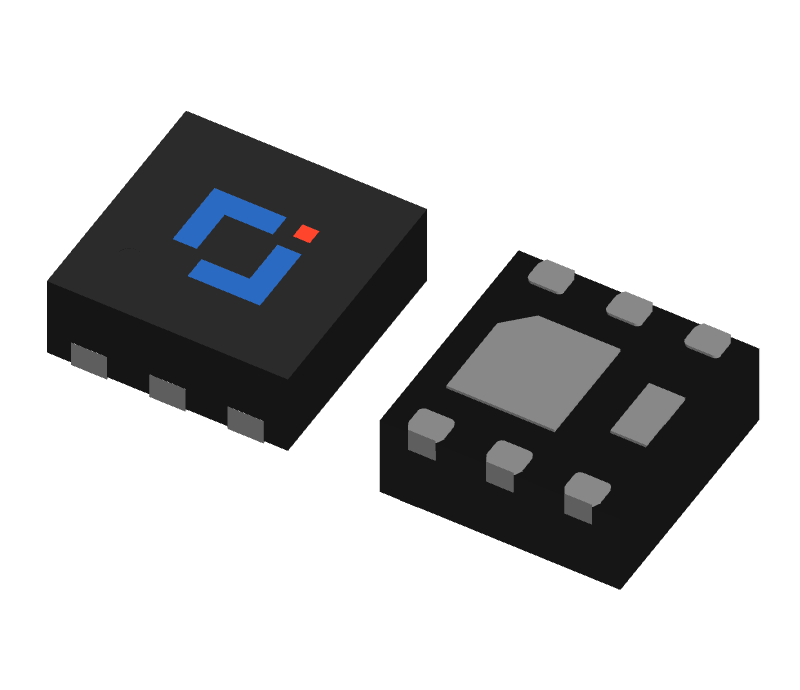

Nch 30V 19A, DFNWB2x2-6L, SGT Power MOSFET
| Part Number | Status | ESD Yes/No |
VDS V |
VGS V |
ID A |
VGS(TH) V |
RDS(mΩ)@VGS 10V Typ |
RDS(mΩ)@VGS 10V Max |
RDS(mΩ)@VGS 4.5V Typ |
RDS(mΩ)@VGS 4.5V Max |
Package |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CJM5R7SN03B | Active | No | 30 | ±20 | 19 | 1.2～2.2 | 3.7 | 5.7 | 6 | 9.5 | DFNWB2x2-6L |
| Part Number | Package Type | Marking | Packing Info | BOX | Carton | MSL |
|---|---|---|---|---|---|---|
| CJM5R7SN03B | DFNWB2x2-6L | 5R7SN03B | 5K/Reel;7 inch | 40K | 160K | MSL1 |
